Product Description

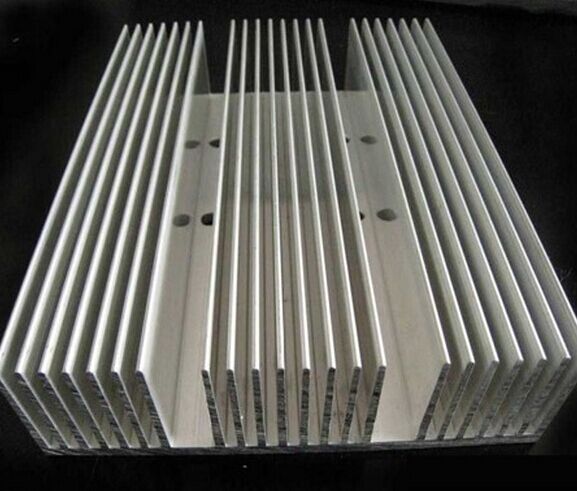

1.Name:Aluminum Extrusion Profiles for Heat Sink
2.Material:6063,6061,6060,6005 etc
3.Temper:T5,T6
4.Color:Silver,Black,Red,Blue,White,and many other colors can be available
5.Specifications: as required
6.Fabrication:cutting,drilling,punching,milling,clearing,etc
7.Package:inner plastic paper interleaving each profile,outer fixed by plywood or pallets, or as required.
8.Certification:ISO 9001:2008;ISO14001:2004;SGS
Technical Data
1)Chemical composition
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
impurity |
Al |
6063 |
0.2 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.4-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
6063 |
T5 |
≥160Mpa |
≥110Mpa |
≥8% |
T6 |
≥205Mpa |
≥180Mpa |
≥8% |
|
6061 |
T6 |
≥265Mpa |
≥245Mpa |
≥8% |
3)Anodized
Grade |
Anodizing thickness |
